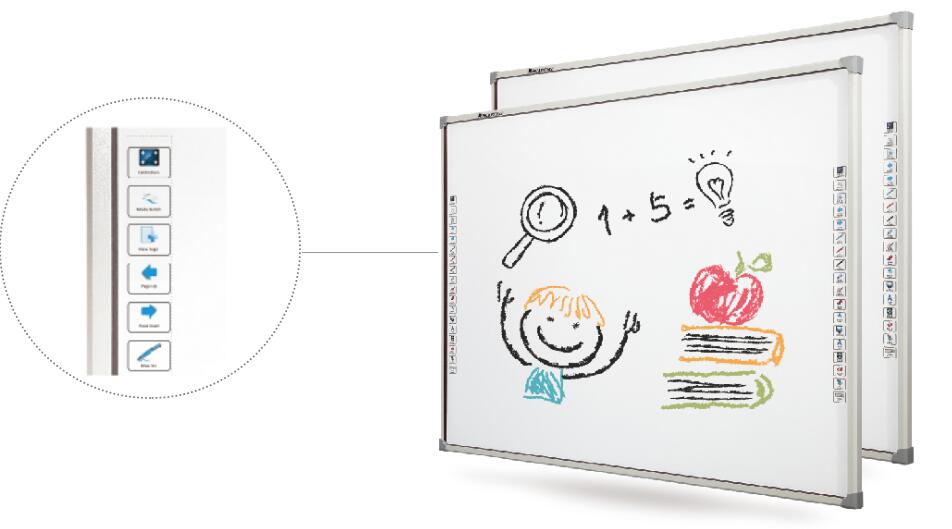

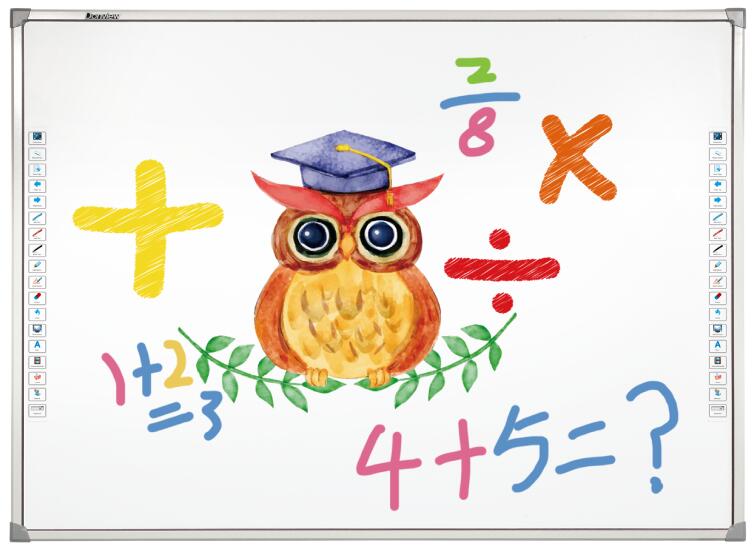

Model
|
|
BHB-T7000
|
|
Mechanical
feature
|
Outer frame
|
Aluminium
alloy bezel (Black color)
|
|
White board
|
1.
galvanized board
|
|
External dimension
|
1160.7mmH x
1781mmW x 30mm TH
|
|
Effective touch area
|
1100.9mmH x 1645.2mmW（82inch,include shortcuts）
|
|
Projection diagonal
|
1993.1mm
(78inch, except shortcuts)
|
|
Effective projection ratio
|
4
: 3
|
|
Packing size
|
1840mm
x 1360mm x 60mm
|
|
Gross weight
|
18KGS
|
|
|
|
Electric
parameter
|
Voltage range
|
DC 5.0V±5%
|
|
Power consumption
|
≤(200mA DC 5V)
|
|
Supply mode
|
USBpower
supply
|
|
ESD
|
EN61000-4-2，4，contact
discharge8KV，air discharge15KV
|
|
Security testing equipment
|
CE,FCC
Class B
|
|
Certification
|
RoHs
|
|
OS support
|
WIN10/WIN8,WIN7,WIN2000/XP/Vista,
Linux
|
|
Communication mode
|
USB2.0
FS,WIN free driver，Android、Linux provided driver
|
|
|
|
Touch
feature
|

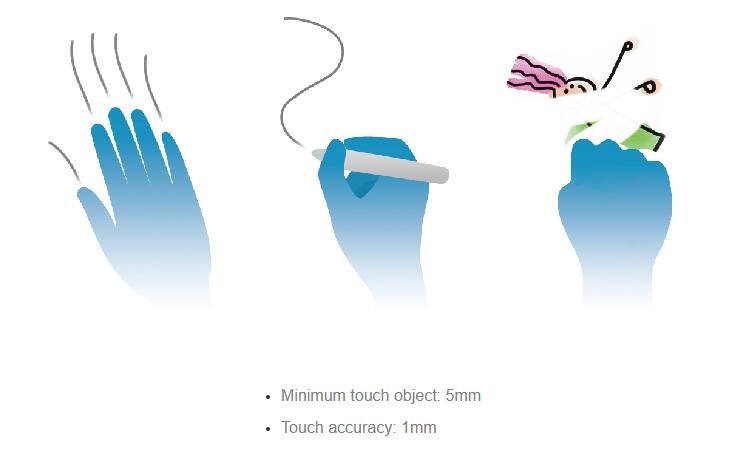

Induction object
|
Finger
pen and any object with diameter>8mm
|
|
Location technology
|
Infrared
imaging touch technology
|
|
Resolution
|
32768(W) × 32768(D)
|
|
Response time
|
Multi
mode：Click：15ms Continue：8ms
|
|
Single
mode：Click：13ms Continue：3ms
|
|
Speed of cursor
|
Max
300dots/second
|
|
Size of effective touch object
|
≥ Ø5mm
|
|
Function of cursor
|
Completely
replace the mouse
Single click，double click and right click
|
|
Positional accuracy
|
95% regional
position error <2mm position error in the edge <5mm
|
|
Multi touch
|
10
point touch and writing
|
|
Life time of touch
|
Infinite
|
|
|
|
Computer
system requirements
|
CPU
|
BentengIII 800（Recommended
1GHz 32（X86）or faster
processor）
|
|
Memory
|
1GB（2GB or higher is recommended）Use inWindows
2000、XP
|
|
2GB（4GB or higher is recommended）Use in Windows
Vista、WIN7
|
|
Hard disk
|
800MB(Contain
the courseware package)free space
|
|
|
|
Environmental
parameter
|
Temperature
|
Operation
Temperature：-20 °C ~ 60 °C,Storage Temperature：-30°C ~ 85°C
|
|
Humidity
|
Operating humidity：20% ~90%
Storage humidity：10%~90%
|
|
Relative humidity
|
40
°C，90%
RH
|
|
External light resistance test
|
Filament lamp (220V,100W) , Vertical dimension
Above 350mm
|
|
The
sunlight radiation intensity of illumination 90000Lux
|
|
Port（Optional）
|
USB/PH2.0
5PIN/ Customization
|
|
Working place
|
Under
strong light，Indoor、Outdoor
|
|
|
|
Bundled
software
|
Electronic whiteboard
software functions
|
Software Agreement：using hardware
associated with the licensing model,The built-in touch screen supports
driverless function,meeting the customer’s need at any time (mouse model of
factory setting).Annotation mode and full-screen mode.
using the materialized graphical interface ,Multilingual text prompt
functions, support icon, also can close the text prompt functions.
Supports multi-hard brush, brush, highlighter, row pen, smart pen, variety of textures pen to write, you can
choose pen type, color, thickness at the same interface and other functions.
Support large object recognition as an eraser function
Support big medium and small three kinds of erasers, and support regional and
full screen clearance.
Supports a variety of graphics rendering function, support set the border
line style and color at the same interface, fill color and other features.
Support resource library functions are available via the network, local
resources transfer text, images, audio, video, supports auto-generated
resource function.
Supports a variety of file import and export functions,Can modify after
introduction PPT
Support page preview function, you can add, delete,copy pages directly and
other functions.
Support a variety of teaching aids tools,such as screen cover, searchlight,
recording function, camera function, measuring function, handwriting
recognition feature.
support transparent page annotation function under the annotation mode
|
|
|
|
Packing
list
|
Interactive whiteboard
|
1pc
|
|
Driver disk（Including
software）
|
1pc
|
|
Whiteboard pointer
|
1pc
|
|
Instruction
|
1pc
|
|
Warranty card
|
1pc
|
|
USB cable 4M
|
1pc
|
|
Hanging piece
|
1set
|
|
Pen
|
4pcs
extendable pen and short pen
|
