24 inch Professional Computer Monitor
Computer Monitor
Overview
Tech Specs
Downloads
Overview

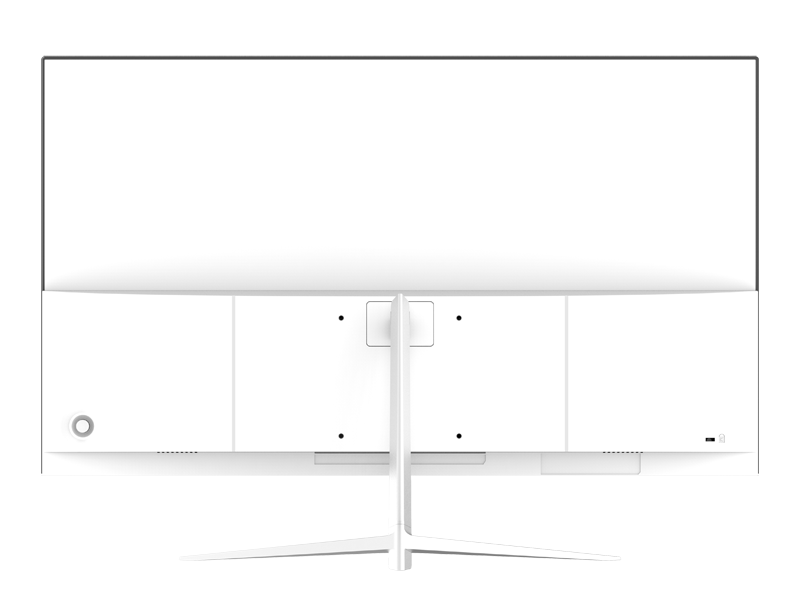

1A-1 copy.png

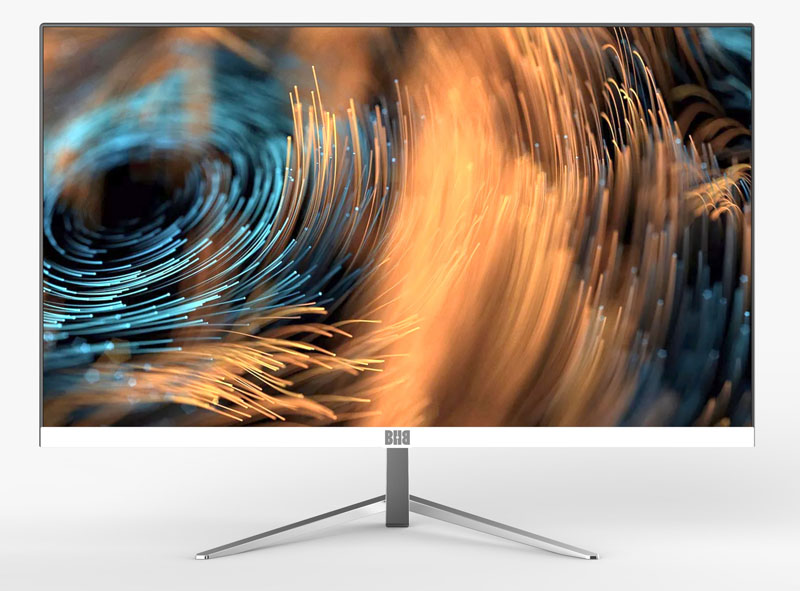

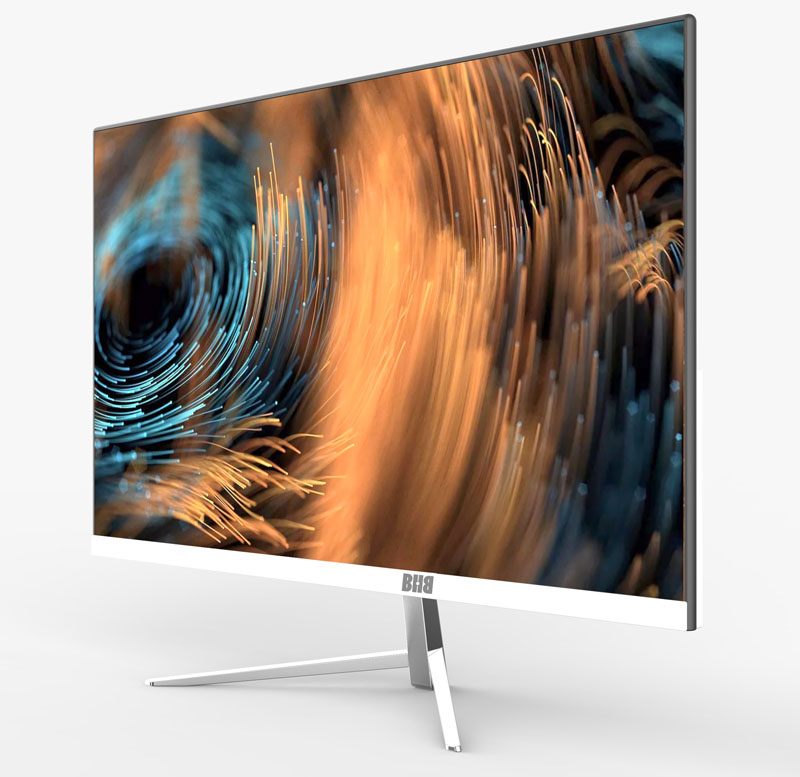

正面 copy.jpg正面斜视 copy.jpg


Tech Specs
BHB LED MONITOR
Model No. MK24002
Panel size
 23.8"
Panel type
 TFT-LCD
Panel manufacturer
 CSOT/BOE/HKC/PANDA
Panel technology IPS / VA
Backlight type
 ELED
View angle
 178/178
Max. Resolution
 1920×1080
Aspect Ratio（H:V）
 16：9
Refresh rate(Hz)
 75Hz
Brightness
 250 cd/m²
Surface treatment
 Matte (Haze 25%)
Contrast Ratio
 3000:1 (Typ.)
Point spacing
 0.0915×0.2745 mm (H×V)
Pixel pitch
 0.2745×0.2745 mm (H×V)
Color quantity
 16.7M (8-bit)
Color gamut
 99% sRGB
Display mode
 black
Pixel arrangement
 RGB vertical stripe
Response time
 2ms（OD）
Reduce BLU-RAY Mode
 Yes
Tempered glass attachable structure
 NO
Other Features
Support Free-Sync（G-Sync）
 YES
Game plus
 YES
curvature
 /
VESA
 Support 75*75
backside LED light
 /
HDR function YES
Input/Output interface
HDMI input
 YES
DVI input
 x0
VGA input
 x0
Display port input
 YES
Type-C input
 optional
SPDIF OUT
 x0
Headphone Output
 optional
USB x0
Built -in speaker
 Optional
Power
Power supply mode
 External power supply
AC input
 100-240V,50/60Hz,1.0A
DC input
 12V-4A
Power Consumption
 ＜ 36W
Stand by Mode
 ＜ 1W
Off Mode
 ＜ 1W
Accessory
HDMI signal line
 x0
DVIsignal line
 x0
VGA signal line
 x0
DP signal line
 x1
Type-C signal line
 optional
Power line
 x1
Audio line
 x0
Manual
 x1
Qualified Certificate
 x1
power adapter
 x1
Packing
Carton dimension (L*W*H)
 680x103x440mm
Product size
 540x420mm(including base)
Gross weight
 3.7 kg
Net weight
 2.65 kg
Loading quantity
 20GP--900PCS
40GP--1850PCS

Downloads
Manuals / Guidelines
×
