Home > Products > Computer Monitor > > 24" Monitor Black/White Desktop LED Screen
24" Monitor Black/White Desktop LED Screen
Computer Monitor
Overview
Tech Specs
Downloads
Overview

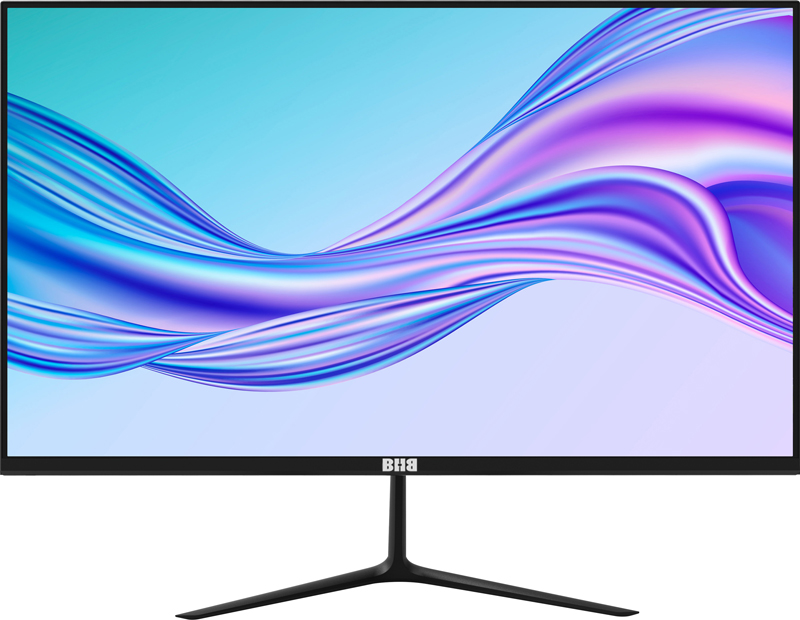

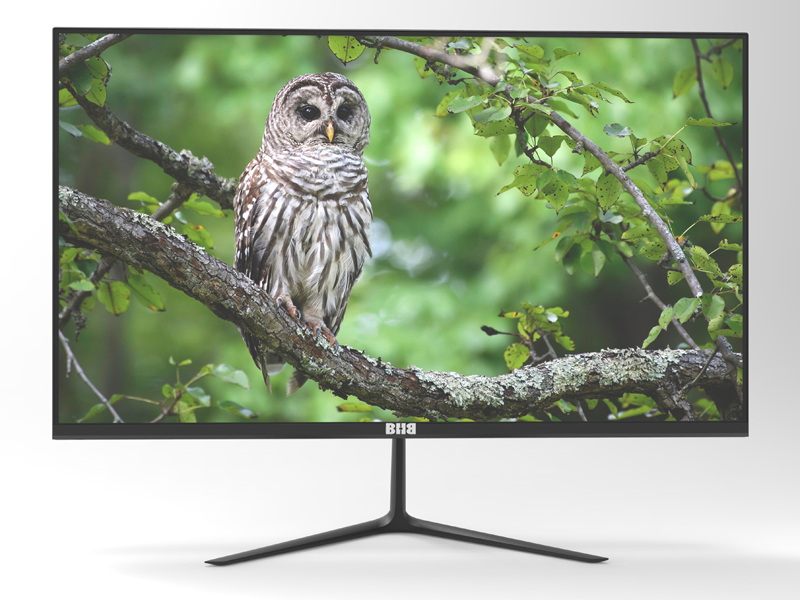

2403-1 copy.jpg1-4 copy.jpg


Tech Specs

BHB LER MONITOR
MK24030
Panel size 23.8inch
Panel type TFT-LCD
Panel manufacturer CSOT/BOE/HKC/PANDA/AUO
Panel technology IPS（ADS）/ VA
Backlight type ELED
View angle 178° (H) / 178° (V)
Max. Resolution 1920×1080
Aspect Ratio（H:V） 16: 9
Refresh rate(Hz) 165Hz
Brightness 220 cd/㎡
Surface treatment Matte (Haze 25%)
Contrast Ratio 3000:1 (Typ.)
Point spacing 0.0915×0.2745 mm (H×V)
Pixel pitch 0.2745×0.2745 mm (H×V)
Color quantity 16.7M（8-bit ）
Color gamut 99% sRGB
Display mode Normally Black
Pixel arrangement RGB Vertical Stripe
Response time 1ms（OD）
Reduce BLU-RAY Mode YES
Tempered glass attachable structure NO
Other Features
Free-Sync（G-Sync） YES
Game plus  YES
curvature /
backside LED light optional
HDR function YES
VESA support, 75 * 75mm
Input/Output interface
HDMI input  yes
DVI input  /
VGA input  /
Display port input   yes
Type-C input  optional
SPDIF OUT /
Headphone Output optional
USB yes (recharge)
Built -in speaker Optional
Power
Power supply mode External power supply
AC input 100-240V,50/60Hz,1.0A
DC input 12V-3A
Power Consumption  ＜36W
Stand by Mode 0.16W
Off Mode 0.16W
Accessory
HDMI signal line /
DVI signal line /
VGA signal line /
DP signal line x1
Type-C signal line optional
Power line x1
Audio line /
Manual x1
Qualified Certificate x1
power adapter x1
Packing
Carton dimension (L*W*H) 680x103x440mm
Product size 540x420mm(including base)
Gross weight 3.7kg
Net weight 2.65kg
Loading quantity 20GP--900PCS
40GP--1850PCS


Downloads
Manuals / Guidelines
×
