Home > Products > Computer Monitor > > 1080 FHD IPS Screen 22" Display Desktop Computer Monitor
1080 FHD IPS Screen 22" Display Desktop Computer Monitor
Computer Monitor
Overview
Tech Specs
Downloads
Overview

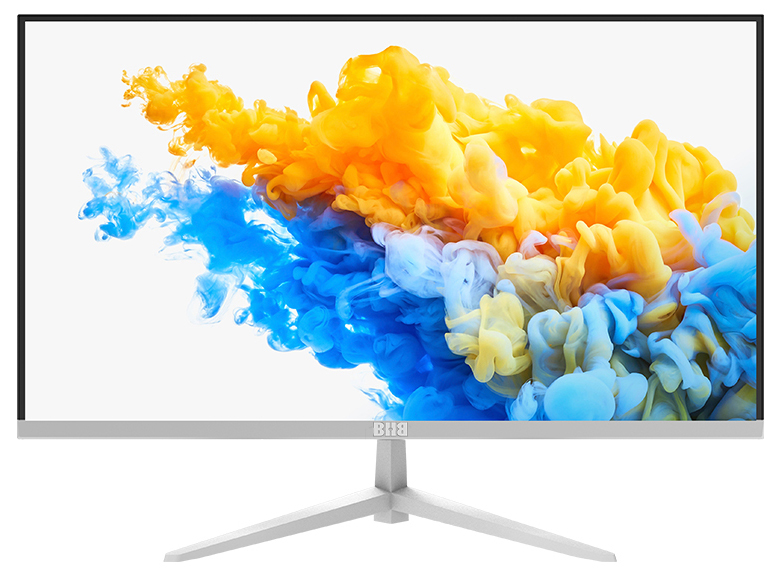

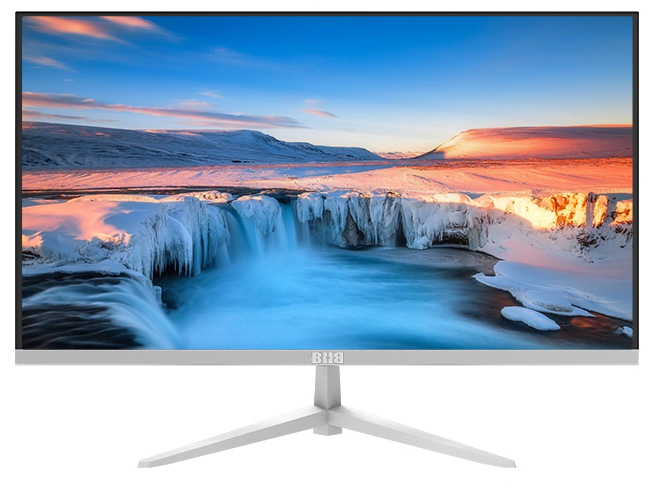

2203 白 6 copy.jpgWhite copy.jpg

4 copy.jpg

Tech Specs


BHB LED MONITOR

Model No. MB22033
Panel size 21.45"
Panel type TFT-LCD
Panel manufacturer CSOT/BOE/HKC/PANDA
Panel technology HVA
Backlight type ELED
View angle 178/178
Max. Resolution 1920×1080
Aspect Ratio（H:V） 16:9
Refresh rate(Hz) 75Hz
Brightness 220cd/㎡ （±20%）
Surface treatment Matte, Hard coating (3H)
Contrast Ratio 4000 : 1 (Typ.) (transmission)
Point spacing 0.08275×0.24825 mm
Pixel pitch 0.24825×0.24825 mm
Color quantity 16.7M (8-bit)
Color gamut 95%
Display mode Normally Black
Pixel arrangement RGB vertical stripe
Response time 5 ms ( OD)
Dynamic Contrast Ratio（DCR） 1,000,000 : 1
Reduce BLU-RAY Mode Yes
Tempered glass attachable structure NO
Other Features
Free-Sync YES
Game plus  /
curvature /
HDR function /
VESA support 75x75mm
Input/Output interface
HDMI input  x1
DVI input  x0
VGA input  x1
Display port input   x0
Type-C input  x0  optional
SPDIF OUT x0
Headphone Output x1
USB x0
Built -in speaker   optional
Power
Power supply mode External power supply
AC input 100-240V,50/60Hz,1.0A
DC input 12V-2.5A
Power Consumption  ＜ 30W
Stand by Mode ＜ 1W
Off Mode ＜ 1W
Accessory
HDMI signal line x1
DVIsignal line x0
VGA signal line x0
DP signal line x0
Type-C signal line x0
Power line x1
Audio line x0
Manual x1
Qualified Certificate x1
power adapter x1
Packing
Carton dimension (L*W*H) 550x107x358 mm
Product size /
Gross weight 3.365 kg
Net weight 2.235 kg
Loading quantity /



Downloads
Manuals / Guidelines
×
