Gaming Monitor 24" Gaming Computer Monitor Profitable LED PC Monitor

Computer Monitor

Overview

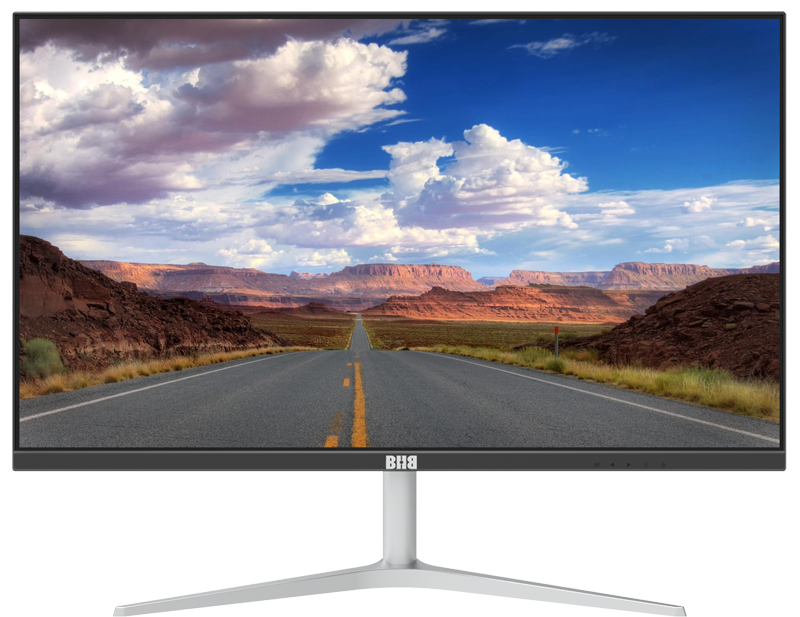

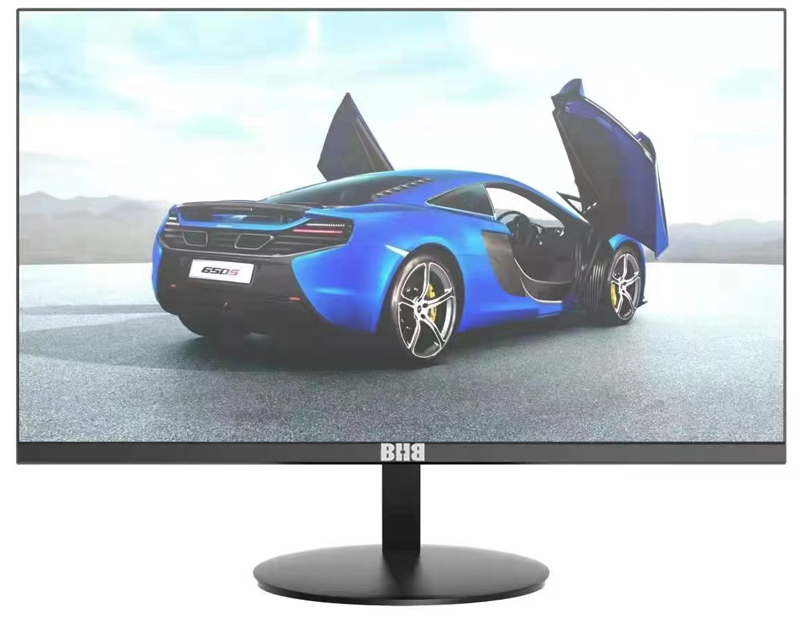

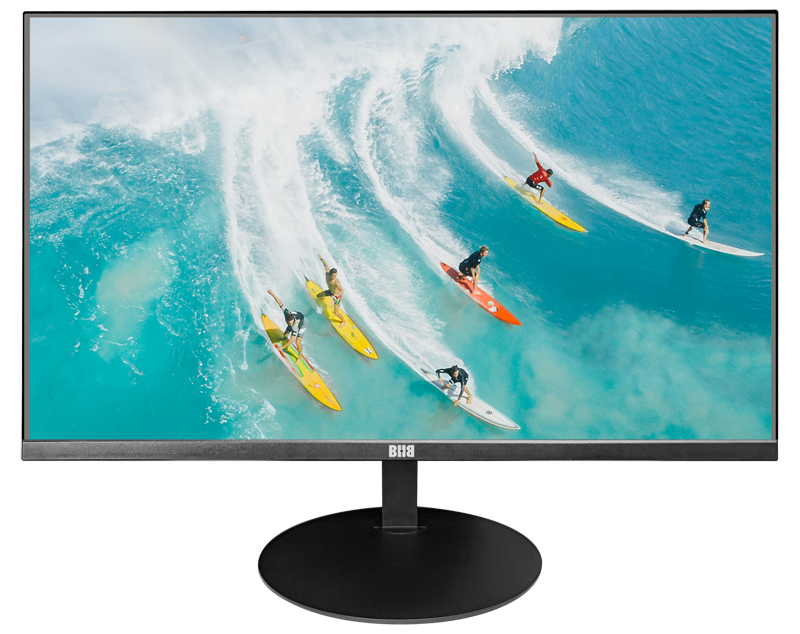

-A2 copy.jpg -A5 copy.png -V4 copy.png

-V3 copy.png

Tech Specs

BHB LED MONITOR

Model MP24003
Panel size	23.8 inch flat monitor
Panel type	TFT-LCD
Panel manufacturer	BOE /CSOT/HKC
Panel technology	IPS/VA
Backlight type	ELED
View angle	178° (H) / 178° (V)
Max. Resolution	1920×1080
Aspect Ratio（H:V）	16: 9
Refresh rate(Hz)	75hz
Brightness	230 cd/㎡ ( /-20%)
Surface treatment	Matte (Haze 25%)
Contrast Ratio	4000:1 (Typ.)
Point spacing	0.1038(H)×0.3114(V) mm
Pixel pitch	0.3114(H)×0.3114(V) mm
Color quantity	16.7M（8-bit ）
Color gamut	99% sRGB
Display mode	Normally Black
Pixel arrangement	RGB Vertical Stripe
Response time	5ms（OD）
Dynamic Contrast Ratio（DCR）	1000000: 1
Reduce BLU-RAY Mode	YES
Tempered glass attachable structure	NO
Other Features
Free-Sync（G-Sync）	YES
Game plus	/
curvature	/
HDR function	/
VESA	YES
Input/Output interface
HDMI input	yes
DVI input	/
VGA input	yes
Display port input	optional
Type-C input	optional
SPDIF OUT	/
Headphone Output	yes
USB	optional
Built -in speaker	Optional
Power
Power supply mode	External power supply
AC input	100-240V,50/60Hz,1.0A
DC input	12V-3A/2.5A
Power Consumption	＜36W
Stand by Mode	0.16W
Off Mode	0.16W
Accessory
HDMI signal line	*1
DVI signal line	/
VGA signal line	optional
DP signal line	optional
Type-C signal line	optional
Power line	x1
Audio line	/
Manual	x1
Qualified Certificate	x1
power adapter	x1
Packing
Carton dimension (LWH)	604118390MM
Product size
Gross weight	4.25
Net weight	3.5kg
Loading quantity	20GP--915PCS 40HQ--2020PCS
