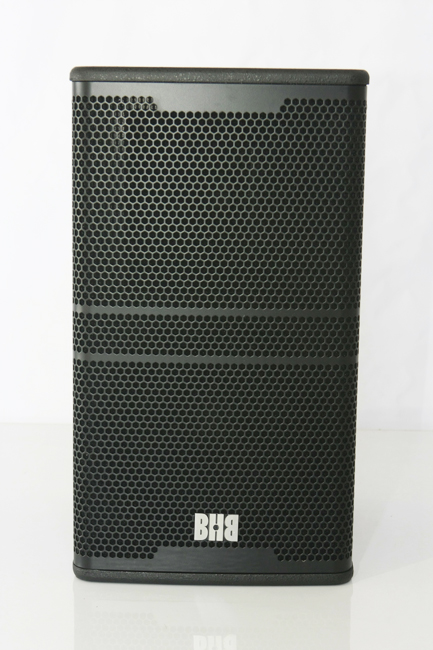

MA-10 Passive Speaker
Passive Speakers
🔸RMS Power Handling:250W
🔸Peak Power Handling:450W
🔸Components:1*10” LF / 170 magnet 3”(65mm) Voice coil 1*75”HF / 44mm voice coil
🔸Normal Impedance: 8ohm
🔸Frequency Response:65Hz-18KHz
🔸Sensitivity:96dB
🔸Maximum SPL:119dB
🔸Nomial Dispersion: H70º x V60º
Overview




Tech Specs
1.RMS Power Handling:250W
2.Peak Power Handling:450W
3.Components:1*10” LF / 170 magnet 3”(65mm) Voice coil 1*75”HF / 44mm voice coil
4.Normal Impedance: 8ohm
5.Frequency Response:65Hz-18KHz
6.Sensitivity:96dB
7.Maximum SPL:119dB
8.Nomial Dispersion: H70º x V60º
9.Output Connectors:2 x NL4 Speakon
10. Cabinet Material:18mm plywood
11.Surface Finished: spray painting metal grille
12. Unit Dimensions (W x H x D): 320x535x340mm
Net Weight: 15kg
Package Dimensions (single unit per box):415x640x376 mm

Gross Weight (single unit per box): 17kg


OR
Unit Dimensions (W x H x D): 320mm (12”) x 535mm (21”) x 340mm (13.4”)
Unit Weight: 15kg (33Ibs)
Package Dimensions (single unit per box): 415mm (16.4”) x 640mm (25.2”) x 376mm (14.8”)
Gross Weight (single unit per box): 17kg (37.5Ibs )
