Home > Products > Active Speakers > > BL-12 Professional Audio Speaker

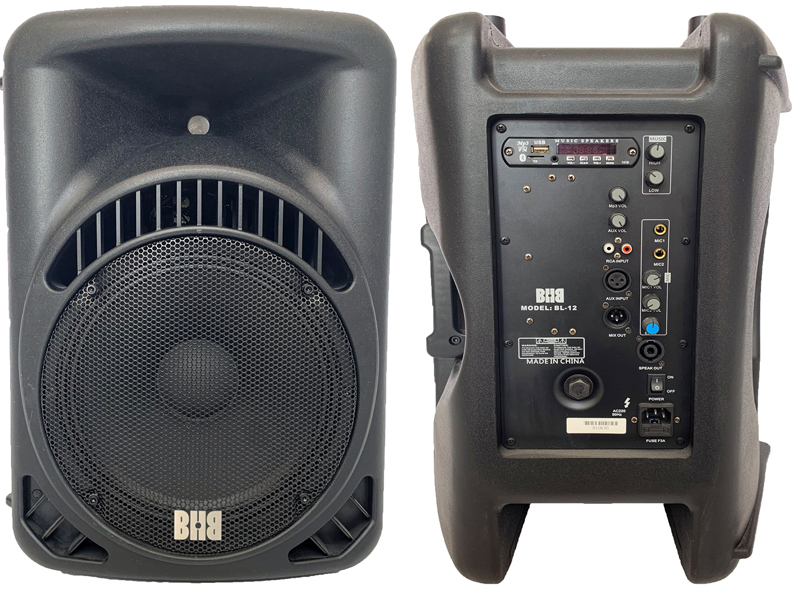

BL-12 Professional Audio Speaker
Active Speakers
🔸Power Handing:200W(RMS),450W(PEAK)
🔸LF Driver:1X12” (170 magnet,65 coils) HF Driver:1X1.3”(34 coils)
🔸Nominal Impedance: 8 Ohms
🔸Frequency Response: 45Hz-20KHz
🔸Sensitivity: 93dB
🔸Maximum SPL: 113dB
Overview
Tech Specs
Downloads
Overview

Tech Specs
1. Power Handing:200W(RMS),450W(PEAK)
2.LF Driver:1X12”  (170 magnet,65 coils)
HF Driver:1X1.3”(34 coils);
3.Nominal Impedance: 8 Ohms
4.Frequency Response: 45Hz-20KHz
5.Sensitivity: 93dB
6.Maximum SPL: 113dB
7. XLR 6.35mm
8. Nominal Dispersion: 80ºH x 50ºV
9.ABS impact resistant nylon fiber cabinet
10.With MIC input,ECHO and Bluetooth.
Unit Dimensions (W x H x D): 454mm (17.9”) x 681mm (26.8”) x 433mm (17”)
Package Dimensions (single unit per box): 480mm (17.9”) x 680mm (26.7”) x 400mm (15.7”)
Unit Weight:16.8kg(37Ibs)
Gross Weight:19.3kg(42.5Ibs)
Downloads
Manuals / Guidelines
×
