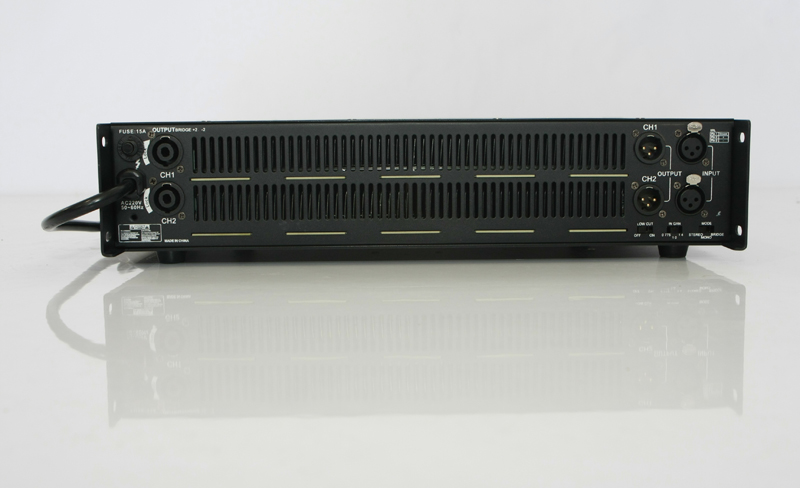

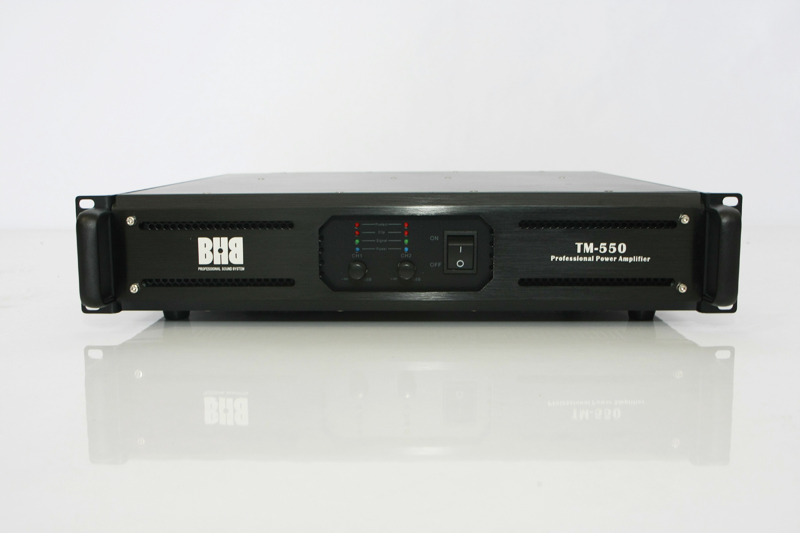

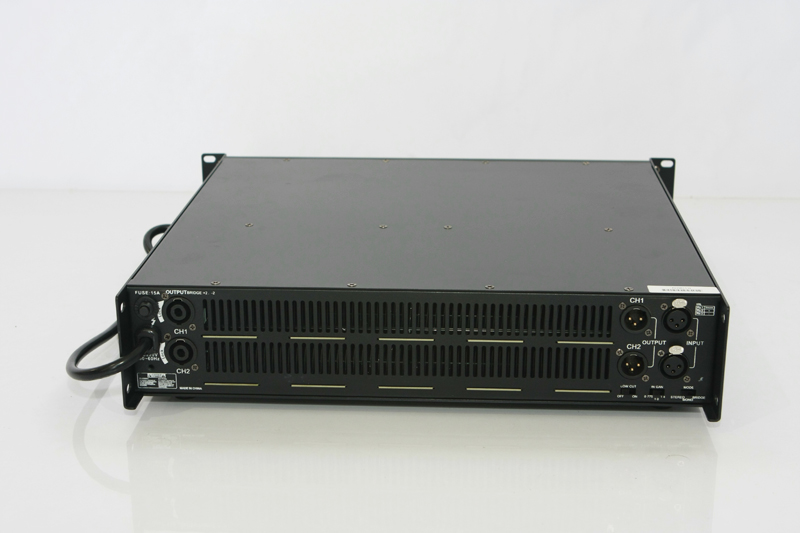

TM-550 Professional Power Amplifier
Amplifier
🔸8Ω Stereo Power: 2x550W
🔸4Ω Stereo Power: 2x720W
🔸8Ω Bridged Stereo Power: 1450W
🔸Channel: 2 Channel
🔸Frequency Response: 20Hz-20KHz ±0.5%
🔸Signal Noise Ratio(dB): ≥102dB
🔸THD+N(rated power,40/KHz)%:<0.05%
🔸Damping Coefficient: >280
Overview
Tech Specs
Downloads
Overview
Tech Specs
1.8Ω Stereo Power: 2x550W
2.4Ω Stereo Power: 2x720W
3.8Ω Bridged Stereo Power: 1450W
4.Channel: 2 Channel
5.Frequency Response: 20Hz-20KHz ±0.5%
6.Signal Noise Ratio(dB): ≥102dB
7.THD N(rated power,40/KHz)%:<0.05%
8.Damping Coefficient: >280
9. Slew Ratio: 30V/μs
10.Input Sensitivity:1Vrms
11.Input Impedance:20kΩ balance/10KΩ Unbalance
12.Input Connectors:2 x Combo XLR type,3pin
13.Link Connectors:2 x Male XLR type,3pin
14.Output Connectors:2 x NL4 Speakon
15.Output Circuitry: CLASS H
16.Power supply:AC110V-240V (50Hz-60Hz)
Dimensions(WxHxD):480x88x370mm
Packing Dimensions(WxHxD):585x142x520mm
Net Weight:19.3kg

Gross Weight:21.4kg


OR
Dimensions (W x H x D): 480mm (19”) x88mm (3.5”) x 370mm (14.6”)
Packaging Dimensions (1 piece/pack): 585mm (23”) x 142mm (5.6”) x 520mm (20.4”)
Net Weight: 19.3kg (42.5Ibs)
Gross Weight (1 piece/pack): 21.4kg (47.2Ibs)

1.1pc/strong ctn
2.Package=565x142x450mm
N.W:19.3kg  G.W:21.4kg
20GP=672pcs  40HQ=1828pcs
