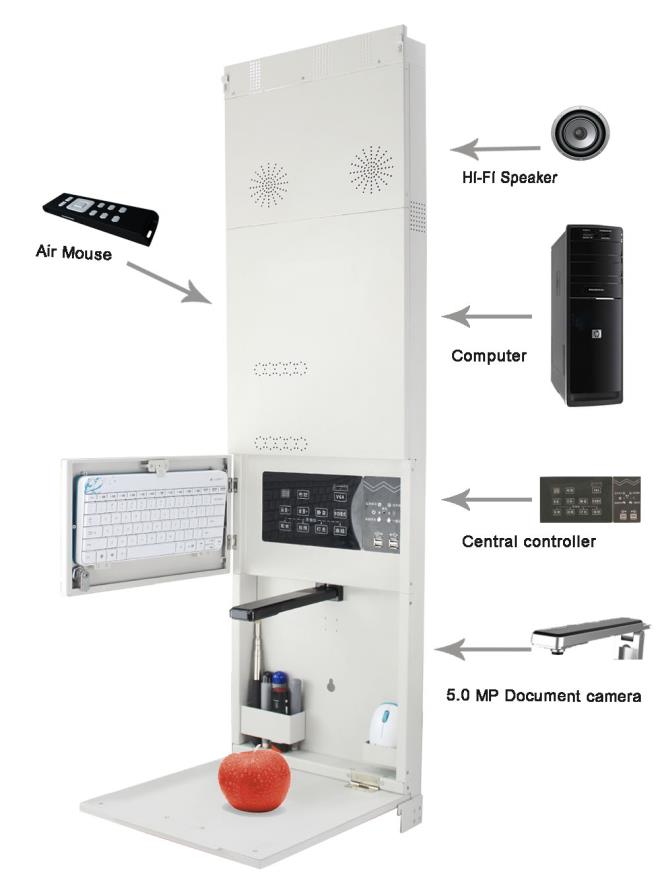

BHB CT-5000
|
|
General
|
|
Control mode
|
capacity touchscreen control panel ,IR remote (any remote),RS-232,software control
|
|
Anti-thunder
|
Built inside anti-thunder module, it resist 6KV shock
|
|
Alarm
|
When the VGA between unit and projector was disconnected, it will give high sound warning
|
|
Input voltage
|
200~240 50HZ/60HZ
|
|
Standby power
|
<=5W
|
|
W*D*H
|
1280 X 340 X 53mm
|
|
Packing size
|
1405 X 465 X 175mm
|
|
Ports
|
|
VGA In
|
3Ports ( down*1, top*1, inside*1)
|
|
VGA Out
|
2 Port (top*1)
|
|
AUDIO In
|
3 Ports ( front*1, top*1, inside*1) which synchronous switch with VGA
|
|
AUDIO Out
|
1 Port (top*1)
|
|
Sound source output
|
1 Port 2.0 AUDIO Output
|
|
HDMI Input
|
2 Port (top*1 HDMI IN and down *1 HDMI IN) ( Optional )
|
|
HDMI Output
|
2 Ports (top*1, inside*1) (Optional )
|
|
MIC
|
1 Port ( adjustable Volume )
|
|
USB2.0
|
7 ( dwon*4, top*2,down*1 for interactive whiteboard)
|
|
USB3.0
|
2(down*2)
|
|
RS-232
|
1 (top*1)
|
|
IOT port
|
1(top*1)
|
|
RJ-45 Input
|
1 (top*1)
|
|
RJ-45 output
|
1 (down*1)
|
|
Central Controller
|
|
Central Controller Version
|
32-bit embedded computer control system
|
|
Infrared coding / Remote control
|
Infrared remote coding function (After the coding operation, you can remote control this machine with any remote, such as TV remote)
|
|
System ON/OFF
|
One click on this button will turn on/off PC and projector(Time-lapse power off)
|
|
VGA
|
press this button and shift to VGA OUT
|
|
HDMI
|
press this button and shift to HDMI OUT
|
|
Mute
|
Volume waxes faint
|
|
Volume
|
press this button and sound will become high
|
|
Volume-
|
press this button and sound will become low
|
|
PC ON/OFF
|
press this button will turn ON/OFF the inside PC
|
|
High volume
|
Press this button and volume increase to 9
|
|
Low volume
|
Press this button and volume will reduce to 5
|
|
Reset
|
press this button and PC will restart
|
|
System Restore
|
Press this button and PC system will restore
|
|
Projector
|
Projector this button and projector will be power ON/OFF
|
|
Alarm
|
Press this button and Alarm will give the warn sound
|
|
Document Camera
|
press this button and the document camera software will be opened
|
|
Take Picture/or Micro lesson recording
|
Press this button will take the picture after you turn on the document camera
|
|
central control
|
Long pressing on this button will active the central control function with VGA switch workable without turning it on PC inside
|
|
PC (optional)
|
|
Mainboard
|
H310
|
|
|
|
CPU
|
8200
|
|
|
|
Memory
|
8G
|
|
|
|
Hard driver
|
240G SSD
|
|
|
|
Amplifier / Speakers
|
|
Rated power
|
20W*2
|
|
SNR
|
>=80dB
|
|
Distortion degree
|
<=0.5%
|
|
Frequency response
|
Input:20Hz-20KHz, Microphone: 60Hz-14KHz
|
|
Document Camera
|
|
Camera
|
1/3' CMOS imaging sensor
|
|
Definition
|
5.0 mega pixels(Optional8.0 mega) Resolution: 2592x1944
|
|
Zoom
|
Max 24x digital
|
|
White balance
|
Auto
|
|
Aperture
|
Auto
|
|
Definition
|
2592x1944
|
|
Image processing
|
Zoom in/out ,Color & B/W,Negative, Mirror, 90°，Rotation,Cut
|
|
Edit function
|
Curve, line, rectangular, oval, text input, redo, delete, line thicknesses, style, color
|
|
Record
|
Audio & Video synchronous recording ( format WMV, AVI etc )
|
|
photo shooting
|
image size adjustable, 9 images preview
|
|
Shooting
|
Yes ( adjustable time in Burst shooting mode)
|
|
Continuous shooting
|
Yes
|
|
PDF
|
Yes
|
|
OCR
|
Multi-language OCR available
|
|
Print
|
Yes
|
