OPS Computer
OPS Computer
◆ Model: OPS006U
◆ Integrated Intel 6th/7th Mobile Skylake/Kaby lake-U single chipset CPU
◆ 1 DDR4 SODIMM 260 Socket

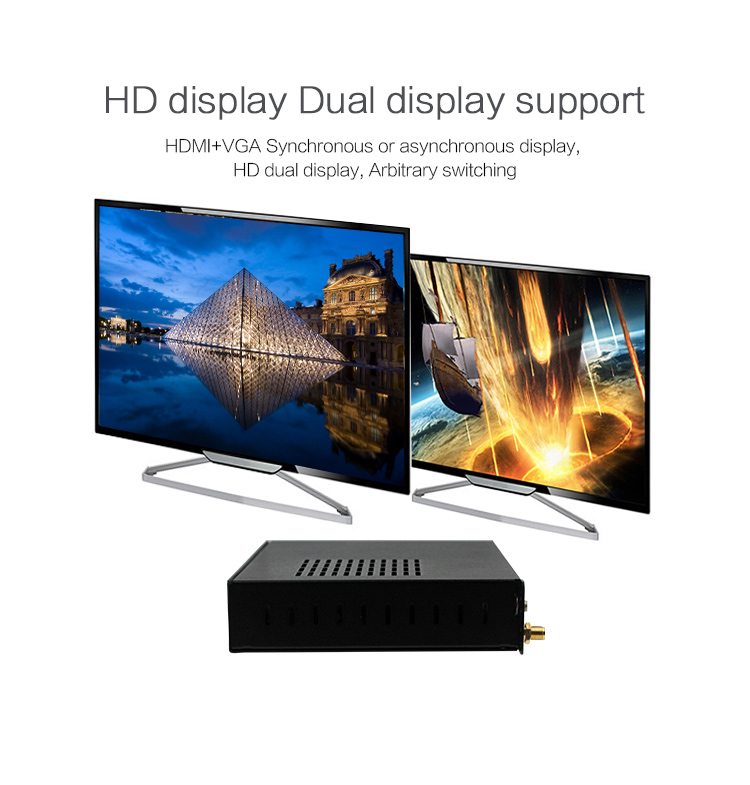

◆ Providing 1*VGA,1*HDMI
◆ Support power-on automatic boot function, jumper selection
◆ Single input DC power supply, DC12-19V power supply
◆ Support OPS expansion
◆ size 179.6*118*29.6 mm
Overview
Tech Specs
Downloads
Overview
OPS006U_______ (5).jpgOPS006U_______ (2).jpgOPS006U_______ (1).jpgOPS006U_______ (4).jpgOPS006U_______ (7).jpgOPS006U_______ (6).jpgOPS006U_______ (8).jpgOPS006U_______ (11).jpgOPS006U_______ (10).jpgOPS006U_______ (12).jpgOPS006U_______ (9).jpgOPS006U_______ (13).jpgOPS006U_______ (14).jpg
Tech Specs
BHB OPS COMPUTER
Model OPS119

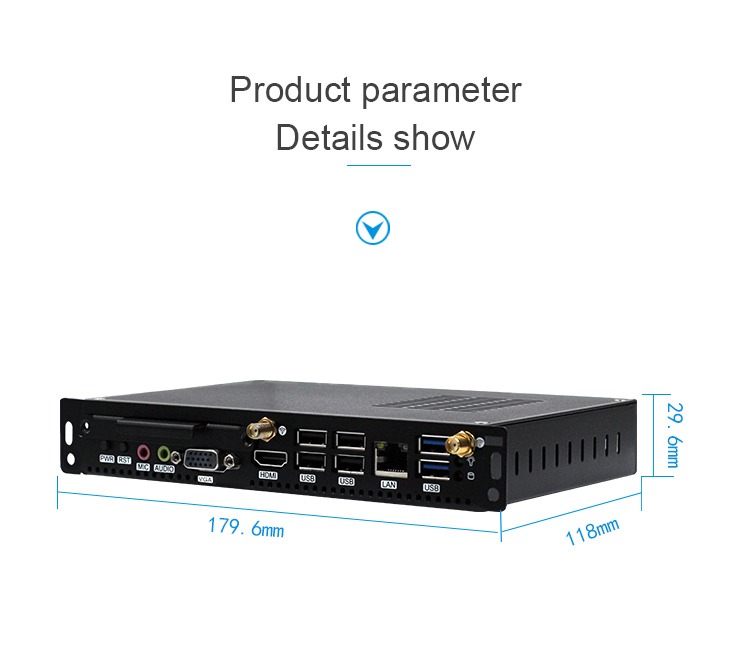

size
 179.6*118*29.6 mm
Processor

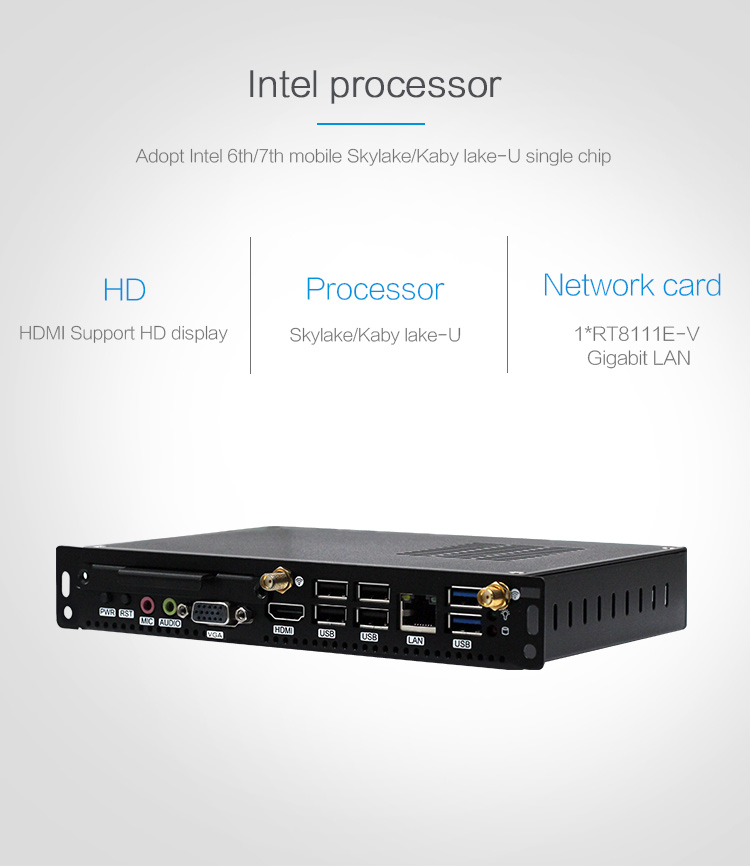

 Onboard integrated Intel 6th /7th Skylake/Kaby lake-U single chipset CPU
chipset
 Intel single chipset
Ram socket
 1*DDR4 SODIMM 260 Socket
Internet
 onboard 1* Gigabit Lan Port
audio
 Onboard HDA ALC662
storage
 1*MINISATA  support SSD; 1*SATA3.0 1*SATA_HDD
color
 Black
Panel interface

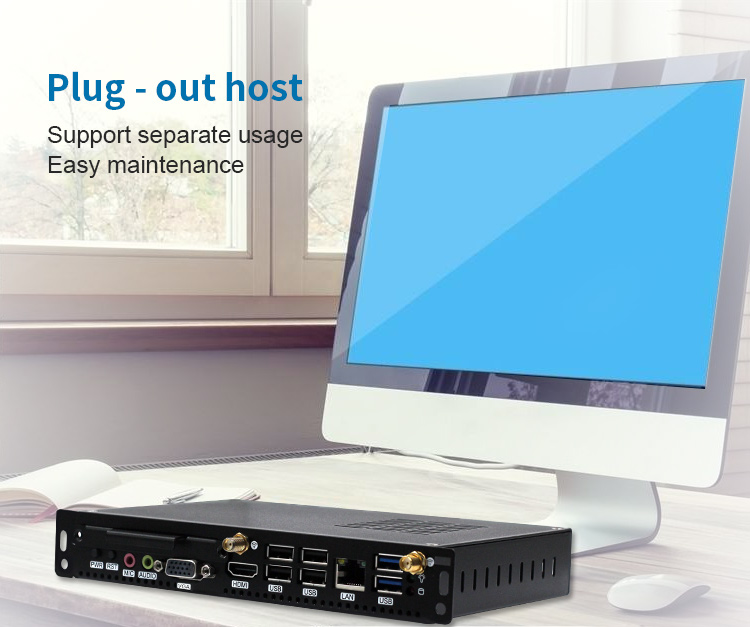

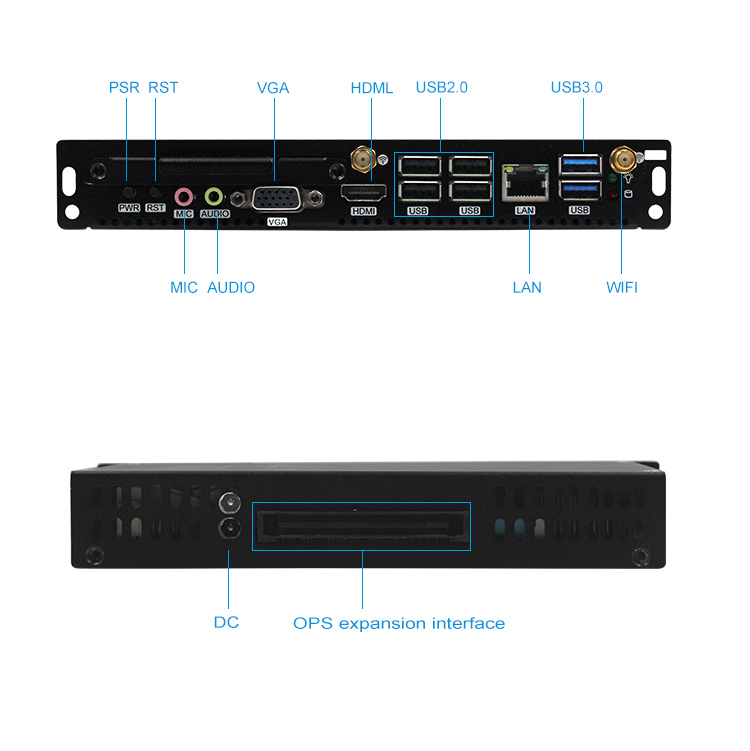

1*LAN  1*HDMI  1*VGA  1*DC  1*MIC-IN  1*LINE-OUT  2*USB3.0 2*USB2.0  2*WIFI antenna interface  1*switch button 1*reset button

 1*hard disk indicator 1*power indicator

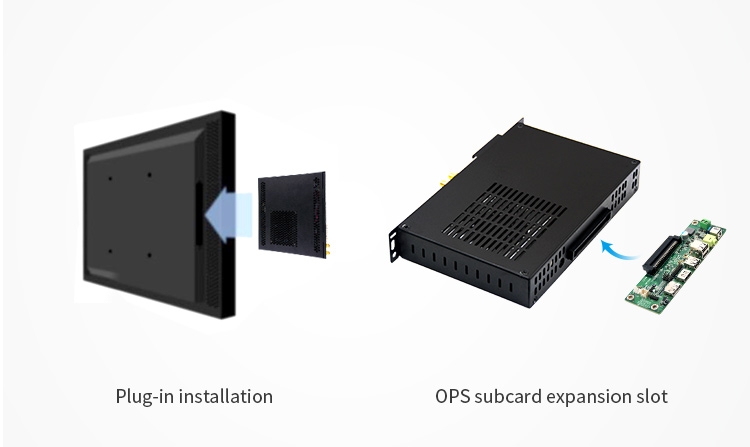

OPS straight card interface
 1*LINE-OUT 1*HDMI and 1*DP (pick one from two ) 1*DC 3*USB 1 switch button
Standard
 1*12V 60W power adapter 1*OPS riser card (optional) 1*WIFI antenna

Optional accessories
Model
 specification
WIFI Module
 Long/short item for optional

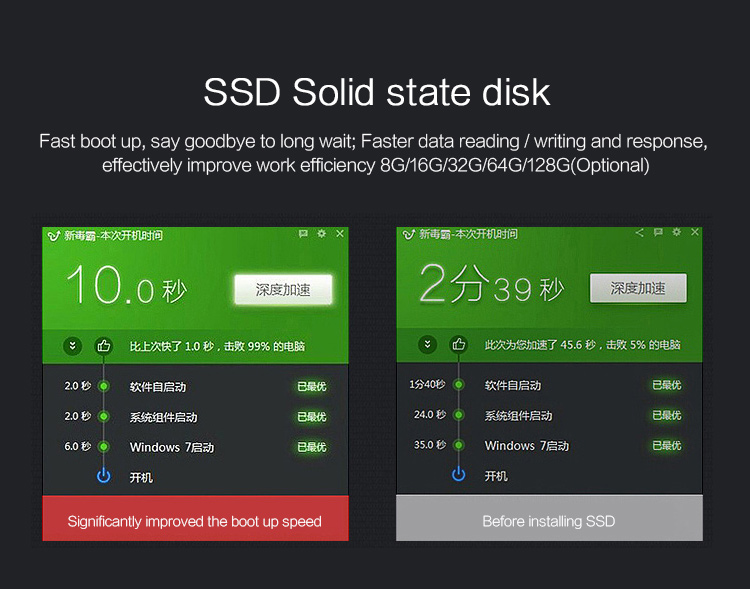

SSD
 8G/16G/32G/64G/128G
Hard disk
 320G/500G
Power
 12V 5A/12V 7A

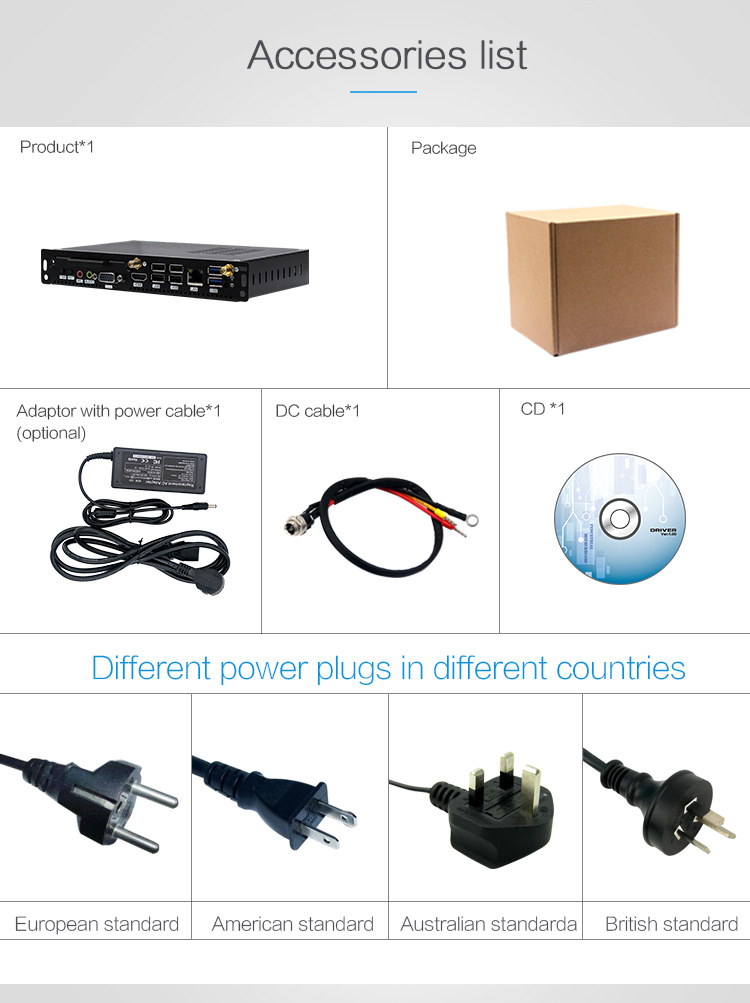

Packing list
1*12V5A Power supply
1*Mini PC
1*driver CD
1*manual
