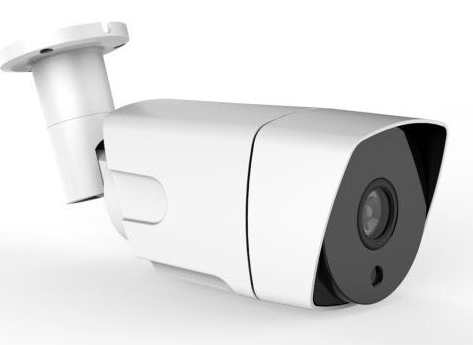

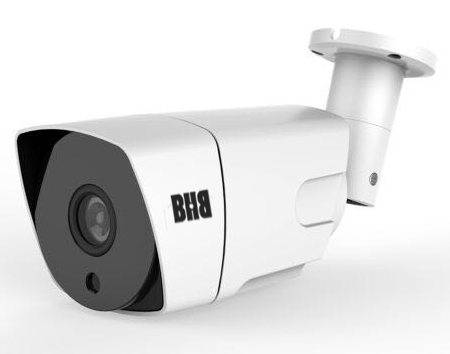

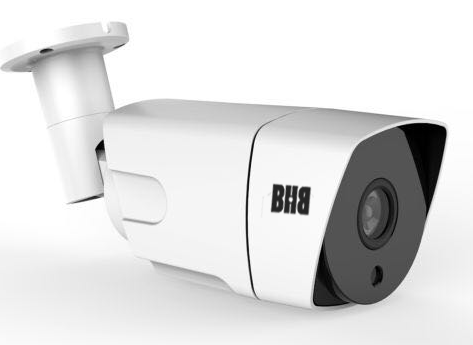

BHB Security Camera
|
|
Model
|
30EC5EX
|
BASIC PARAMETER
|
Image Sensor
|
SONY IMX335
|
Chipset
|
XM550
|
Effective Pixels
|
5MP 2592(H) × 1944(V)
|
Min. Illumination
|
Color: 0.01Lux@F1.2;B&W:0Lux@F1.2（AGC ON）with IR
|
IR Distance
|
30 Meters
|
Lens
|
3.6mm Fixed lens(2.8mm, 4mm, 6mm optional)
|
Noise Reduction
|
3D digital noise reduction
|
WDR
|
DWDR
|
BLC
|
Support
|
S/N Ratio
|
≥50db (AGC closed)
|
Image Settings
|
Support for brightness, contrast, saturation, white
balance, AWB (automatic white balance), AGC (automatic gain), AE (automatic
exposure); support privacy area; image rotation; Automatic, manual color to
black and other switches.
|
AUDIO / VIDEO ENCODING
|
Encoding Format
|
|
H.265/265+
Main Profile Encoding;
H.264 Baseline / Main Profile/High Profile Encoding
|
|
Image Resolution
|
Main Stream: 5MP@15fps
|
|
Sub Stream: 4MP/3MP/2MP@25fps
|
Video Bit Rate
|
32Kbps-8Mbps continuously adjustable, support CBR /
VBR
|
Character Overlay
|
Support overlay for channel name, date and time,
stream information, and position is adjustable.
|
Audio Encoding
|
G.711
|
Audio Bit Rate
|
64Kbps
|
DATA TRANSMISSION & STORAGE
|
Data Storage
|
Video, Image
|
Storage Mechanism
|
Manual, automatic (cycle, timing, alarm switch, motion
detection)
|
Alarm Data Transmission
|
FTP, E-mail, Browser, CMS
|
Protocol
|
TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPOE,UPNP,SMTP,ONVIF
|
Client Browse
|
Support IE6.0 and above browser browsing
|
Mobile Client
|
Support iPhone, iPad, Android platform
|
Other
|
Support corridor mode, increase the vertical and
narrow environment to monitor the area
|
PORT
|
Network Interface
|
RJ45 10M / 100M network adaptive
|
GENERAL
|
Operation T/H
|
-20°C ~ 55°C/0﹪-90﹪
|
Waterproof
|
IP66
|
Power Source
|
DC12V /POE(28V-57V)
|
Power Consumption
|
<10W (max)
|
