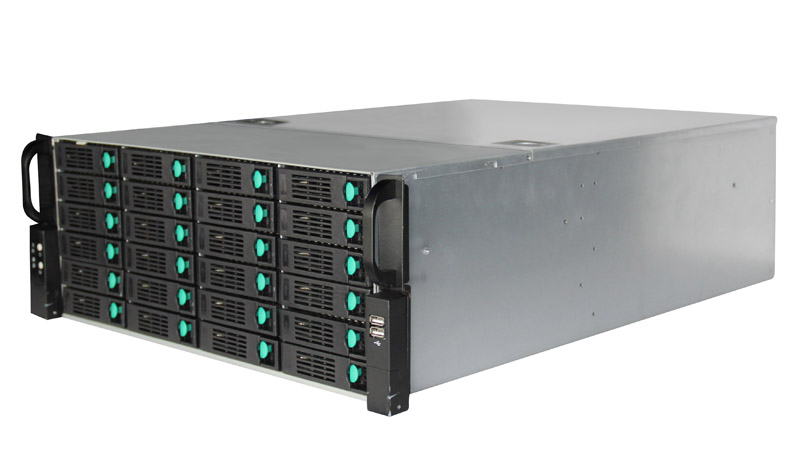

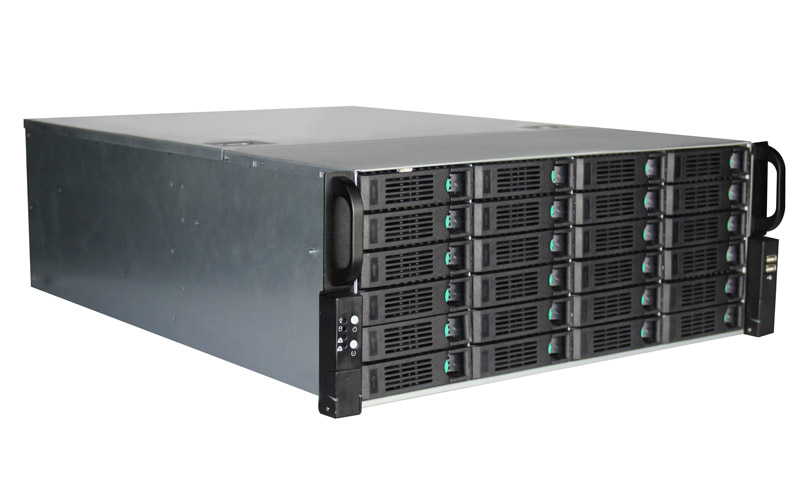

Model No.

NVR24

Operation System

Embedded LINUX system

Image Code Control

Image code quality adjustable, variable bit stream and limited bit stream optional

Dual Stream

Each channel can set main stream and sub stream

Video Standard

H.264/H.265 self-adaption

Monitoring Image Quality

4K/5MP/3MP/1080P/960P/720P

Image Motion Image

Each screen can set multiple detection areas and set 6-level sensitivity(IPC Support)

Recording Playback Quality

Any 1ch/4ch/9ch/16ch playback simultaneously

Region Cover

Every channel can set 4 cover regions(IPC Support)

Recording Mode

Support manual, auto, motion detection, alarm trigger record mode

Backup Way

Support HDD, U-disk, USB mobile HDD, USB DVD-RW, network storage and backup(IPC Support Partial)

Operation Way

Mouse, keyboard

Local Login

User name and password

Recording Storage

Local HDD, network

External Ports

Video Input

（mode)

128ch input, support 4K/5MP/3MP/2MP

64ch preview mode without smart analyzing function

36ch preview mode support 8ch smart analyzing function

Audio Input

According to network video channel number do 1:1network audio input

Video Output

2×VGA 2×HDMI

Audio Port

1ch RCA input，1ch RCA output

Network Port

2×10M/100M/1000M

RS485 Port

Full duplex standard 485 ports

USB Port

1×USB3.0，2×USB 2.0

Alarm Input

16ch

Alarm Output

16ch

HDD

HDD Port

24×SATA 1×E-SATA HDD port

Max Capacity

Each port supports MAX 6TB HDD

Mobile Surveillance

Support(iPhone, Windows Mobile, BlackBerry, Symbian, Android)smart phone

Power Supply

ATX110-220V 400W 50-60Hz

Power consumption

≤50W（without HDD）

Working Temperature

-10℃～＋55℃

Working Humidity

10％-90％

Size

431.5mm×600mm×177.5mm

Weight (without HDD)

about 23kg

Package

1pc/Carton，72mmX577mmX312mm

Installation Way

Desktop installation, standard cabinets installation
