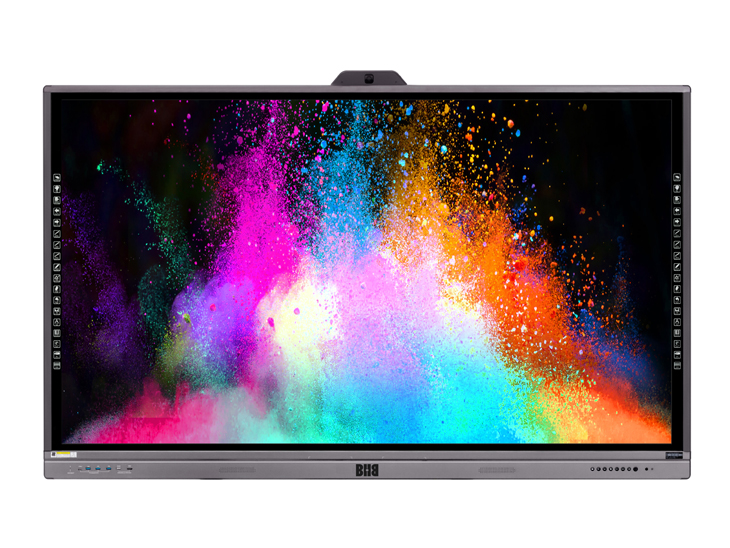

BHB Infrared All-In-One Touch Monitor
|
Model
|
WA-R65IR
|
WA-R75IR
|
WA-R86IR
|

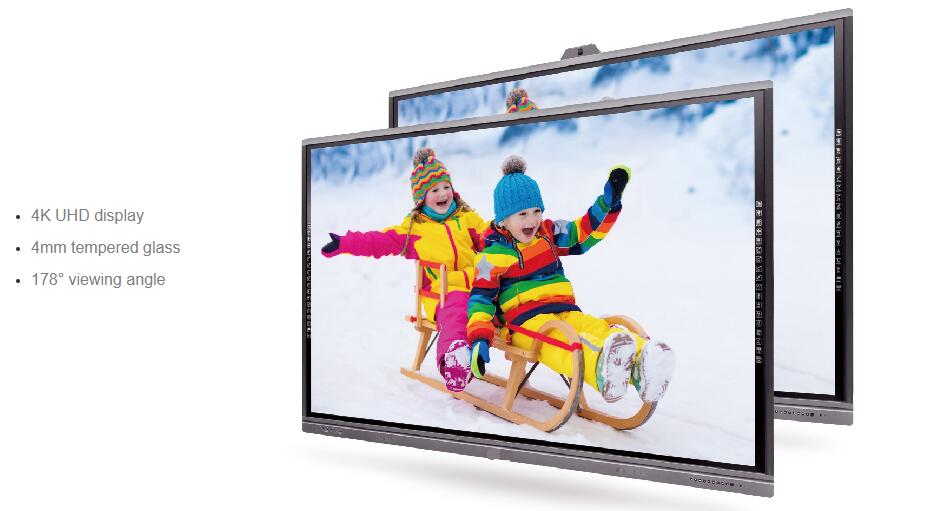

Display
|
Size
|
65 inch
|
75 inch
|
86 inch
|
|
Type
|
a-Si TFT-LCD
|
a-Si TFT-LCD
|
a-Si TFT-LCD
|
|
Aspect Ratio
|
16:9
|
16:9
|
16:9
|
Backlight
|
LED
|
LED
|
LED
|
Resolution
|
3840×2160
|
3840×2160
|
3840×2160
|
Refresh Rate
|
60Hz
|
60Hz
|
60Hz
|
Brightness
|
400nits
|
400nits
|
400nits
|
Contrast Ratio
|
4000:1
|
4000:1
|
4000:1
|
Viewing Angle
|
178°
|
178°
|
178°
|
Colors
|
1.07B(10 bits)
|
1.07B(10 bits)
|
1.07B(10 bits)
|
Life(MTBF)
|
≥30,000H
|
≥30,000H
|
≥30,000H
|
Touch Area(L*W)/mm
|
1452*836
|
1689*970
|
1932*1108
|
Display Area(L*W)/mm
|
1428.48*803.52
|
1650.24*928.26
|
1895.4*1065.9
|
Glass Material
|
AG(anti-glare) tempered glass
|
AG(anti-glare) tempered glass
|
AG(anti-glare) tempered glass
|
Glass Thickness
|
4 mm
|
4mm
|
4 mm
|
Glass Hardness
|
Mohs 7
|
Mohs 7
|
Mohs 7
|
Speaker
|
/
|
20W*2
|
20W*2
|
20W*2
|
Power
|
/
|
AC:100-240V;60/50Hz;
200W(Max); ≤0.5W(Standby)
|
AC:100-240V;60/50Hz;
330W(Max); ≤0.5W(Standby)
|
AC:100-240V;60/50Hz;
450W(Max); ≤0.5W(Standby)
|
Android
|
Version
|
Android 11
|
Android 11
|
Android 11
|
|
CPU
|
Amlogic T982, Cortex A55*4 1.9GHz
|
Amlogic T982, Cortex A55*4 1.9GHz
|
Amlogic T982, Cortex A55*4 1.9GHz
|
|
GPU
|
MaliG52 MP2
|
MaliG52 MP2
|
MaliG52 MP2
|
|
RAM
|
4G/8G DDR4
|
4G/8G DDR4
|
4G/8G DDR4
|
|
ROM
|
32G / 64G
|
32G / 64G
|
32G / 64G
|
|
WiFi
|
IEEE 802.11a/b/g/n/ac (2.4GHz+5GHz)
|
IEEE 802.11a/b/g/n/ac (2.4GHz+5GHz)
|
IEEE 802.11a/b/g/n/ac (2.4GHz+5GHz)
|
Analog Signal
|
VGA Compatible:VGA,SVGA,XGA,WXGA,SXGA, WUXGA
|
Connection
|

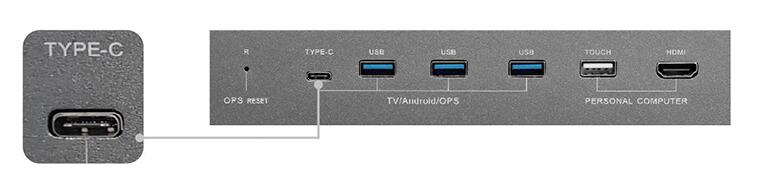

Front
|
HDMI 2.0 in*1(CEC&ARC)
|
HDMI 2.0 in*1(CEC&ARC)
|
HDMI 2.0 in*1(CEC&ARC)
|
USB Type-C 3.0*1(USB+Video+Audio+Charge: 20V/3.25A)
|
USB Type-C 3.0*1(USB+Video+Audio+Charge: 20V/3.25A)
|
USB Type-C 3.0*1(USB+Video+Audio+Charge: 20V/3.25A)
|
USB-A 3.0*3(2.0 in android, 3.0 in OPS)
|
USB-A 3.0*3(2.0 in android, 3.0 in OPS)
|
USB-A 3.0*3(2.0 in android, 3.0 in OPS)
|
Touch USB-B 2.0 for HDMI*1
|
Touch USB-B 2.0 for HDMI*1
|
Touch USB-B 2.0 for HDMI*1
|
Rear
|
DP 1.2 in*1
|
DP 1.2 in*1
|
DP 1.2 in*1
|
HDMI 2.0 in*2(CEC)
|
HDMI 2.0 in*2(CEC)
|
HDMI 2.0 in*2(CEC)
|
VGA in*1
|
VGA in*1
|
VGA in*1
|
HDMI 2.0 out*1(Optional)
|
HDMI 2.0 out*1(Optional)
|
HDMI 2.0 out*1(Optional)
|
Spdif out(Optical)*1
|
Spdif out(Optical)*1
|
Spdif out(Optical)*1
|
Headphone out(3.5mm)*1
|
Headphone out(3.5mm)*1
|
Headphone out(3.5mm)*1
|
Android USB-A 3.0*1
|
Android USB-A 3.0*1
|
Android USB-A 3.0*1
|
Android USB-A 2.0*1
|
Android USB-A 2.0*1
|
Android USB-A 2.0*1
|
Touch USB-B 2.0*1
|
Touch USB-B 2.0*1
|
Touch USB-B 2.0*1
|
RJ45*2(100Mbps in Android, 1000Mbps in OPS)
|
RJ45*2(100Mbps in Android, 1000Mbps in OPS)
|
RJ45*2(100Mbps in Android, 1000Mbps in OPS)
|
WiFi antenna*3
|
WiFi antenna*3
|
WiFi antenna*3
|
BT 5.1 antenna*1
|
BT 5.1 antenna*1
|
BT 5.1 antenna*1
|
RS232*1
|
RS232*1
|
RS232*1
|
Touch
|
Touch Performance
|
Technology:Infrared; Minimum Touch Object:≥2.5mm; Touch Precision:1mm; Positioning Precision:<2.8mm.
|
Touch Durability
|
≥60,000,000 times.(More than 100,000 hours)
|

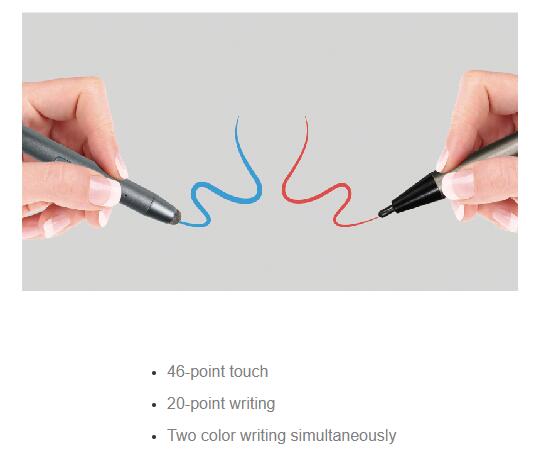

Touch Points
|
40-point touch, 20-point writing
|
Touch Tools
|
Fingers, pens, or other untransparent objects.
|
Response Time
|
Single touch:<8ms, Dual touch:<12ms.
|
Light Resistance
|
Work normally under 80,000 lux illumination(Full daylight ≈ 100,000 lux)
|
OS Compatibility
|
Windows XP/7/8/10; Linux; Chrome OS; Mac OS; Android
|
Touch Features
|
Driver-free, calibration-free, waterproof, dustproof, ultra-thin, light.
|
Power Supply
|
<2W, DC 5V±5%, electric current<500mA.
|
Webcam
(Optional)
|
Model
|
DC-200C-W01
|
DC-200C-W01
|
DC-200C-W01
|
Scan Mode
|
Progressive
|
Progressive
|
Progressive
|
Resolution
|
2.07 Megapixel(1080p)
|
2.07 Megapixel(1080p)
|
2.07 Megapixel(1080p)
|
Field of View(FOV)
|
82°(horizontal), 55°(vertical)
|
82°(horizontal), 55°(vertical)
|
82°(horizontal), 55°(vertical)
|
Type
|
Open pluggable module, easy to load and unload.
|
Open pluggable module, easy to load and unload.
|
Open pluggable module, easy to load and unload.
|
OPS
(Optional)
|
CPU
|
Intel Core i5/Customization
|
RAM
|
4G DDR4/Customization
|
Storage
|
128G SSD/500G HDD/Customization
|
Network
|
Ethernet:10/100/1000Mpbs, WiFi:IEEE 802.11b/g/n/ac(2.4GHz+5GHz), Bluetooth:4.2
|
Interface
(subject to model)
|
DP 1.2 out*1 / HDMI 1.4 out*1 / VGA out*1 / Line out(3.5mm)*1 / Mic in(3.5mm)*1 / RJ45*1 / WiFi antenna*2
USB-A 3.0*3+USB-A 2.0*3
Recover button*1 / Power button*1
|
Operating System
|
Windows 10 64bit professional(trial)
|
Size(L*W*H)/mm
|
180*194*42,80 pin
|
180*194*42,80 pin
|
180*194*42,80 pin
|
Dimension
&
Weight
|
Physical Dimensions
(L*W*T)/mm
|
1488*928*100
(without wall mount)
1488*928*123
(with wall mount)
|
1733*1070*94.7
(without wall mount)
1733*1070*126.7
(with wall mount)
|
1968*1201*111.8
(without wall mount)
1968*1201*149.3
(with wall mount)
|
Packed Dimensions(L*W*H)/mm
|
1690*210*1060
|
1920*210*1150
|
2154*230*1354
|

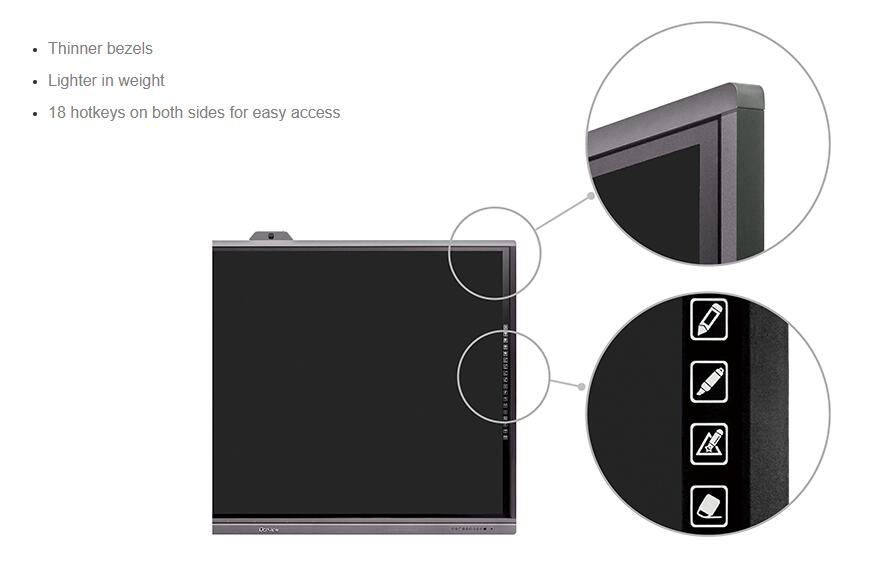

Bezel Width(with camera)/mm
|
Left/right/Top:15.67
Bottom:71.89
|
Left/right/Top:22.14
Bottom:78.11
|
Left/right/Top:15.67
Bottom:71.89
|
Net Weight
|
45Kg±1Kg
|
57Kg±1Kg
|
78Kg±1Kg
|
Gross Weight
|
57Kg±1Kg
|
71Kg±1Kg
|
102Kg±1Kg
|
Environmental Requirement
|
/
|
Operation temperature:0~40℃; Operation humidity:20%~80%RH
|
In The Box
|
/
|
Manual*2(1 for All-in-one touch screen, 1 for wall mount) / Installation guide*1 / Warranty card*1 / Qualified certificate*1 / Packing list*1.
Pen*2 / Power cable*1(3 meters) / HDMI cable*1(3 meters) / USB cable*1(A-A, 3 meters).
|
Installation
|
/
|
Standard: wall mount; Optional: mobile floor stand.
|
Warranty
|
/
|
Touch screen/OPS & accessories: by sales contract. Software upgrade: free for lifetime.
|
